INTEGRAL Flow Series:

SMART. SIMPLE. SAFE.

Don’t leave your success up to guesswork. Our digitally-integrated INTEGRAL Flow Series delivers accurate, real-time data, taking the guesswork out of bulk material handling and processing.

Integral-764x682_v3

THE SIMPLER WAY TO ACCURATE MEASUREMENTS

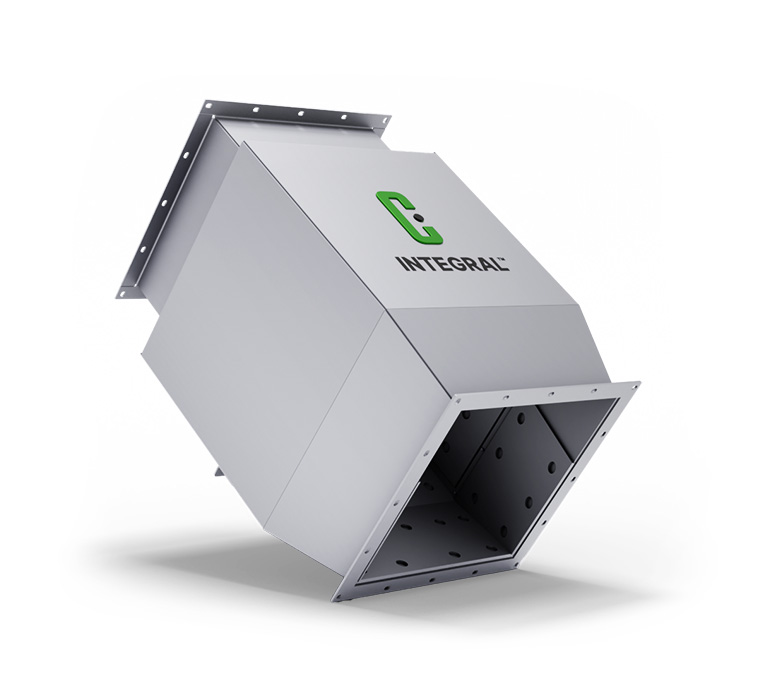

Boost your productivity and confidence without a complete overhaul of your existing systems. Our INTEGRAL Flow Sensors are designed for incline applications to capture real-time flow rate and total weight measurement with typical accuracy within +/-1%.

The compact design of the flow sensor and touchscreen PLC controller allows for flexible placement to capture data at the plant operator or enterprise level. Additionally, these sensors are suitable for installation in existing spouts and chutes without requiring geometry adjustments.

Designed for dry bulk materials like seed, grain, and minerals without features that can damage the commodity. INTEGRAL Flow Sensors are able to measure a broad range of flow rates from 800 to 50k lbs/minute.

Schedule your site review now to see if the INTEGRAL Flow Sensor is an ideal fit for your operations.

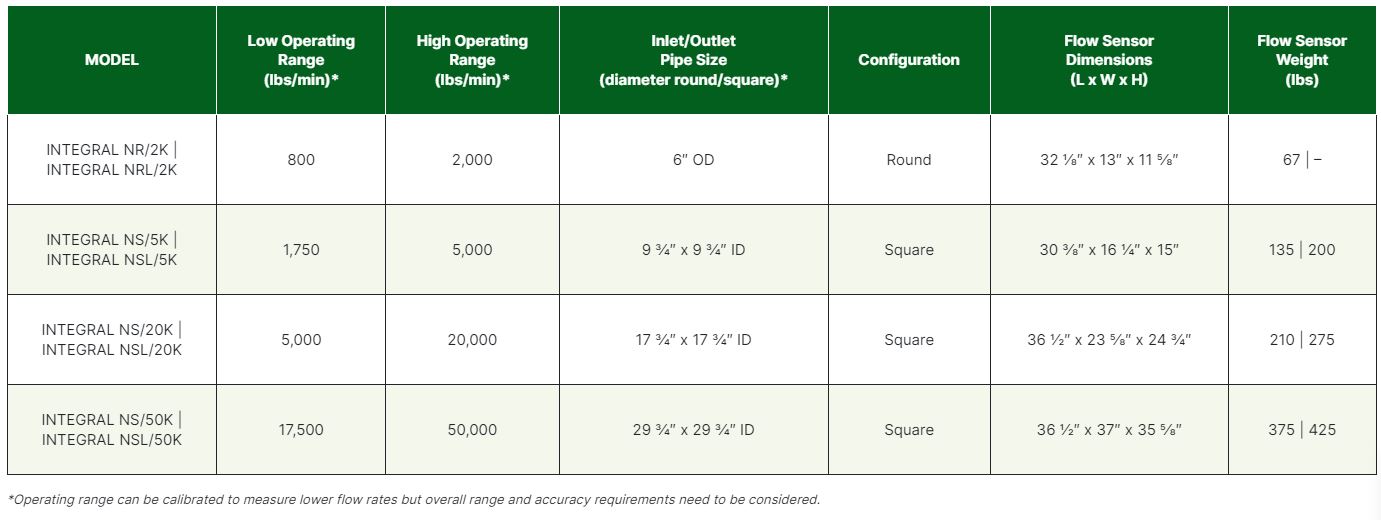

INTEGRAL Flow Series Specifications

Integral graph

BASE

  • BASE Software Included

  • Programmable Logic Controller (PLC) Box

  • Remote Service*

  • Calibrate and Operate From
PLC Box

  • Send & Receive Direct Signals

    Via initializing inputs and outputs

  • Target Presets

    Set batch weight target with setpoint based on % or lbs to control sliding gate or other mechanisms as desired

  • Air Control

    For cleaning or auxiliary output for custom use

  • Remote Reset

    Digital input for binary pushbutton or auxiliary output for custom use

  • PLC & HMI Comms

    Gain remote access to the screen
view/control and data logging

  • ModBus Connection

    Allow operators to view data and
control functions remotely from the master device

  • Remote Marquee Display

    Display active flow rate and batch
total weight | Optional: Custom Marquee data

PRO

  • PRO Software Included

  • Programmable Logic Controller (PLC) Box

  • Remote Service*

  • Calibrate and Operate From
PLC Box

  • Send & Receive Direct Signals

    Via initializing inputs and outputs

  • Target Presets

    Set batch weight target with setpoint based on % or lbs to control sliding gate or other mechanisms as desired

  • Air Control

    For cleaning or auxiliary output for custom use

  • Remote Reset

    Digital input for binary pushbutton or auxiliary output for custom use

  • PLC & HMI Comms

    Gain remote access to the screen
view/control and data logging

  • ModBus Connection

    Allow operators to view data and
control functions remotely from the master device

  • Remote Marquee Display

    Display active flow rate and batch
total weight | Optional: Custom Marquee data

ENTERPRISE

  • ENTERPRISE Software Included

  • Programmable Logic Controller (PLC) Box

  • Remote Service*

  • Calibrate and Operate From
PLC Box

  • Send & Receive Direct Signals

    Via initializing inputs and outputs

  • Target Presets

    Set batch weight target with setpoint based on % or lbs to control sliding gate or other mechanisms as desired

  • Air Control

    For cleaning or auxiliary output for custom use

  • Remote Reset

    Digital input for binary pushbutton or auxiliary output for custom use

  • PLC & HMI Comms

    Gain remote access to the screen
view/control and data logging

  • ModBus Connection

    Allow operators to view data and
control functions remotely from the master device

  • Remote Marquee Display

    Display active flow rate and batch
total weight | Optional: Custom Marquee data

CADARO COMPLETE FEATURES

  • Ultimate value annual subscription to hardware and software

  • A choice of the CADARO sensor unit. Any series, any model

  • ENTERPRISE Software Included

  • Programmable Logic Controller (PLC) Box

  • Remote Service*

  • Calibrate and Operate From
PLC Box

  • Send & Receive Direct Signals

    Via initializing inputs and outputs

  • Target Presets

    Set batch weight target with setpoint based on % or lbs to control sliding gate or other mechanisms as desired

  • Air Control

    For cleaning or auxiliary output for custom use

  • Remote Reset

    Digital input for binary pushbutton or auxiliary output for custom use

  • PLC & HMI CommsGain remote access to the screen
view/control and data logging

  • ModBus Connection

    Allow operators to view data and
control functions remotely from the master device

  • Remote Marquee Display

    Display active flow rate and batch
total weight | Optional: Custom Marquee data

*Site service is available as needed for an additional fee

READY TO OPTIMIZE YOUR OPERATIONAL EFFICIENCY?

The INTEGRAL Flow Series can mean the difference between messy, costly guesstimating and accurate, reliable data. Schedule a site review with CADARO today to learn more about our digitally integrated flow sensor technology and see what it can do for your operation.
